P3.565.JCA

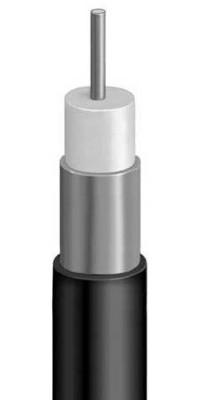

1) Description
A solid aluminum tube is precision, micro-cellular foam dieletric core, the core containers
A fully bonded copper clad center conductor, PE jacket.
Suitable Applications: multiple dwelling units (MDU) and feeder applications,
2) Physical Dimensions
Center Conductor:3.28+0.01mm Copper Clad Aluminum
Dielectric:13.20+0.05mm Foam PE
Shield thickness:0.58+0.005mm AL Tube
Jacket:15.86+0.05mm PE
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +60℃
Max. Pulling Tension: 350 lbs
Min. Bend Radius :5.0 in.
4) Electrical Characteristics
Impedance:75+2 Ohm
Capacitance:50+3pF/m
Velocity of Propagation:87%
Inner Conductor:0.96Ω/Mft 3.15Ω/km
Outer Conductor:0.34Ω/Mft 1.12Ω/km
Loop:1.30Ω/Mft 4.26Ω/km
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
5 |
0.14 |
400 |
1.32 |
|
30 |
0.34 |
450 |
1.40 |
|
55 |
0.47 |
500 |
1.49 |
|
83 |
0.58 |
550 |
1.56 |
|
211 |
0.95 |
600 |
1.64 |
|
250 |
1.03 |
750 |
1.85 |
|
300 |
1.13 |
865 |
2.00 |
|
350 |
1.23 |
1000 |
2.17 |
