RG6 STANDARD

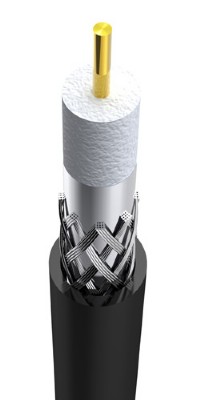

1) Description
18 gauge (1.02mm) copper covered steel or solid bare copper center conductor;
gas expanded polyethylene dielectric; inner shield aluminum foil overlap bonded
to dielectric; outer shield of bare aluminum braid wire; jacket of polyvinylchoride
or polyethylene. Nominal O.D. 6.91mm.
2) Physical Dimensions
Center Conductor:----------1.02+0.01mm Copper Clad Steel/Solid Bare Copper
Dielectric:--------------------4.57+0.05mm Foam PE
Shield:------------------------Bonded AL Foil 100%
Braid Coverage:-------------60%X16X4X0.16+0.005mm AL Wire
Jacket:------------------------6.91+0.05mm PVC/PE
3) Mechanical Characteristics
Operating Temperature Range:---------------20℃ To +75℃
Max. Recommended Pulling Tension: -----45 lbs
Min. Bend Radius (Install):-------------------3 in.
4) Electrical Characteristics
Sparker Test:----------------4000VAC
Impedance:------------------75+3Ω
Capacitance:-----------------54+3pF/m
Velocity of Propagation:---85%
SRL:--------------------------20dB (5-1000MHz) / 15dB (1001-3000MHz)
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
1 |
0.38 |
900 |
6.96 |
|
5 |
0.58 |
1000 |
7.45 |
|
10 |
0.70 |
1200 |
8.25 |
|
50 |
1.48 |
1450 |
9.34 |
|
100 |
2.01 |
1800 |
10.69 |
|
200 |
2.86 |
2200 |
11.54 |
|
400 |
4.23 |
2500 |
11.70 |
|
700 |
5.96 |
3000 |
13.07 |
