Description

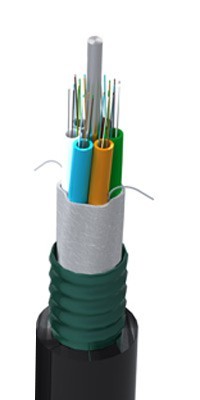

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic(FRP)locates in the center of core as a non-metallic strength member. The tubes(and fillers)are stranded around the strength member into a compact and circular core. After
an Aluminum Polyethylene Laminate(APL)moisture is applied around the cable core, the cable is completed with a PE sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Standards
GYFTA cable complies with Standard YD/T901-2001 as well as IEC 60794-1.
Technical Parameters
|
Cable Type
(Increased by 2 fibers) |
Fiber
Count |
Tubes |
Fillers |
Cable Diameter
mm |
Cable
Weight
kg/km |
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/ 100mm |
Bending Radius
Static/Dynamic
mm |
|
GYFTA-2~6Xn |
2~6 |
1 |
5 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA8~12 Xn |
8~12 |
2 |
4 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-14~18 Xn |
14~18 |
3 |
3 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA20~24 Xn |
20~24 |
4 |
2 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-26~30 Xn |
26~30 |
5 |
1 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-32~36 Xn |
32~36 |
6 |
0 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
| ||||||||
|
GYFTA-2~12Xn |
2~12 |
1 |
5 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-14~24Xn |
14~24 |
2 |
4 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-26~36Xn |
26~36 |
3 |
3 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-38~48Xn |
38~48 |
4 |
2 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-50~60 Xn |
50~60 |
5 |
1 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-62~72 Xn |
62~72 |
6 |
0 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
| ||||||||
|
GYFTA-2~6 Xn |
2~6 |
1 |
7 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-8~12 Xn |
8~12 |
2 |
6 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-14~18Xn |
14~18 |
3 |
5 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-20~24 Xn |
20~24 |
4 |
4 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-26~30 Xn |
26~30 |
5 |
3 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-30~36 Xn |
32~36 |
6 |
2 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-38~42 Xn |
38~42 |
7 |
1 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-44~48 Xn |
44~48 |
8 |
0 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-50~60 Xn |
50~60 |
5 |
3 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-62~72 Xn |
62~72 |
6 |
2 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-74~84Xn |
74~84 |
7 |
1 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-86~96 Xn |
86~96 |
8 |
0 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-98~108 Xn |
98~108 |
9 |
1 |
17.1 |
226 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-110~120 Xn |
110~120 |
10 |
0 |
17.1 |
226 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-122~132 |
122~132 |
11 |
1 |
19.2 |
279 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-134~144 |
134~144 |
12 |
0 |
19.2 |
279 |
1000/3000 |
300/1000 |
10D/20D |
Storage/Operating Temperature:-40℃ to +70℃
Note:
a. Suffix Xn denotes fiber type and see details in optical fiber instruction.
b. The colour arrangements of fiber and tube are specified in the colour identification table.
c. The nominal value of the PE sheath thickness is 1.8mm .
