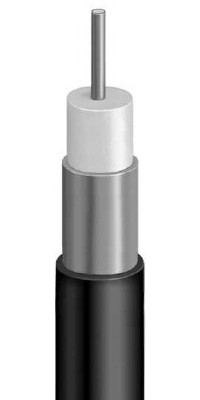

A solid aluminum tube is precision, micro-cellular foam dieletric core, the core containers

A fully bonded copper clad center conductor, PE jacket.

Suitable Applications: multiple dwelling units (MDU) and feeder applications,



Center Conductor: 3.15+0.01mm Copper Clad Aluminum

Dielectric: 13.03+0.05mm Foam PE

Diameter of Shield: 13.72+0.01mm AL Tube

Jacket: 15.49+0.1mm PE



Operating Temperature Range: -20℃ To +60℃

Max. Pulling Tension: 100kgf

Min. Bend Radius : 10.2 cm



Impedance: 75+2 Ohm

Capacitance: 50+3pF/m

Velocity of Propagation: 88%

Inner Conductor: 3.34Ω/km

Outer Conductor: 1.94Ω/km

Loop: 5.28Ω/km
