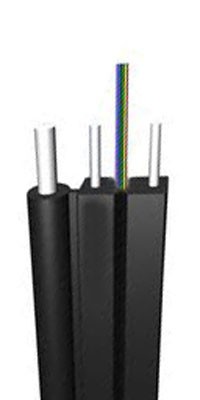

FTTH DROP CABLE (GJYXFCH)
The fibers or ribbon, 250um, either of single-mode or multimode type, are positioned in the jacket. Two parallel steel wires are placed at the two sides of the flat cable. The sheath is mad of Flame-resistant PVC.
Characteristics
Small in diameter and light in weight, the cable is suitable for applying in the branches and limited indoor spaces.
Good flexibility
Easy installation; Strength cords and cables can be stripped without tools; either ends can be easily separated from cables.
Excellent flexibility and bending strength of the cable;
Fire-resistant PVC are used for the cable sheath.
Application
Adopted to backbone network, access network and fiber to the home.
|
Cable Type
(Increased by 2 fibers) |
Fiber Count |
Cable Diameter
mm |
Cable
Weight
kg/km |
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/ 100mm |
Bending Radius
Static/Dynamic
mm |
|
GJYXFCH-1~2Xn |
1~2 |
2.0x6.0 |
30 |
300/600 |
1000/2200 |
10D/20D |
|
GJYXFDCH-4Xn |
4 |
2.0x6.0 |
30 |
300/600 |
1000/2200 |
10D/20D |
|
GJYXFDCH-8Xn |
8 |
2.5x6 |
35 |
300/600 |
1000/2200 |
10D/20D |
Technical Parameters
Storage/Operating Temperature:-40℃ to +70℃
