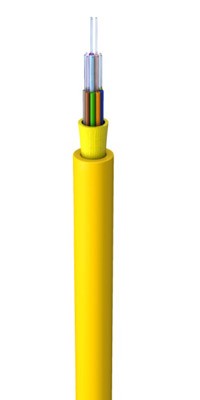

Multi-core Indoor Cable fiber optic cable GJPFJV(H)
Multi-core Indoor fiber optic Cable
Nonmetallic strength member
Tight buffer fiber
PVC or LSZH Polyolefin sheath
Characteristics
·Low transmission loss and dispersion
·Small outer diameter and light, applicable to limited room, such as indoor equipment and inside building
·Good flexibility and bend
·Flame retardant PVC sheath
Application
Transmission equipment etc, integrated distribution network
Technical Parameters
|
Fiber Count |
Cable Diameter
mm |
Cable
Weight
kg/km |
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/ 100mm |
Bending Radius
Static/Dynamic
mm |
|
4 |
4.5 |
11 |
130/440 |
200/1000 |
10D/20D |
|
6 |
5.3 |
15 |
130/440 |
200/1000 |
10D/20D |
|
8 |
5.6 |
19 |
130/440 |
200/1000 |
10D/20D |
|
12 |
6 |
24 |
130/440 |
200/1000 |
10D/20D |
Storage/Operating Temperature:-20℃ to +60℃
The tensile and pressure requirements are for horizontal wiring
Fiber count, dimension and mechanic requirements can be adjusted according to customer’s request.
Note
D represents the diameter of the cable, the bend radius could be half for G657 fiber
The fiber could be single mode G652, G657 and multi mode A1a and A1b
Sheath materials could be LSZH Polyolefin or PVC
Sheath color is according to YD/T 1258.2-2009, or specified by customer
The cable length could be 1km, 2km or specified by customer
Other requirements agreed by the customer and the supplier
