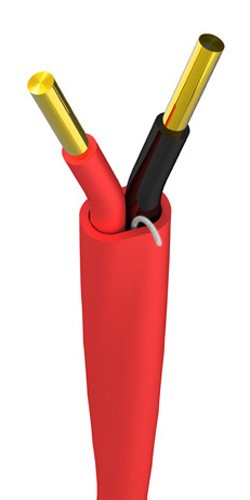

SECURITY CABLE 16AWG/2C SOLID SHIELD
1) Description
16 gauge (1.29mm) 2 solid bare copper conductor; PVC insulation, ripcord,
shield, drain wire, PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:1.29+0.01mm Solid Bare Copper
Insulation:1.80+0.02mm PVC
Insulation Thickness:0.23mm
Shield:AL Mylar Tape
Drain Wire:7X0.22mmTC
Ripcord:YES
Jacket:4.32+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:23.00 Lbs/Mft
Min. Bend Radius:1.7 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:4.16Ω/Mft
Capacitance:30 pF/ft
