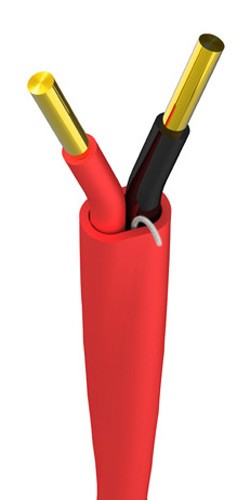

SECURITY CABLE 18AWG/2C SOLID
1) Description
16 gauge (19X0.29mm/65X0.16mm) 4 strand bare copper conductor;
PVC insulation, ripcord, PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
1) Description
18 gauge (1.02mm) 2 solid bare copper conductor; PVC insulation, ripcord
PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:1.02+0.01mm Solid Bare Copper
Insulation:1.50+0.02mm PVC
Insulation Thickness:0.23mm
Ripcord:YES
Jacket:3.85+0.03mm PVC
Jacket Thickness:0.381mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:16.00 Lbs/Mft
Min. Bend Radius:1.5 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:6.4Ω/Mft
Capacitance:29 pF/ft
2) Physical Dimensions
Center Conductor:19X0.29+0.005mm Solid Bare Copper
OR 65X0.16+0.005mm Solid Bare Copper
Insulation:2.00+0.02mm PVC
Insulation Thickness:0.254mm
Ripcord:YES
Jacket:5.60+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:43.25 Lbs/Mft
Min. Bend Radius:2.2 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:4.23Ω/Mft
Capacitance:33 pF/ft
