15VRtC/PH

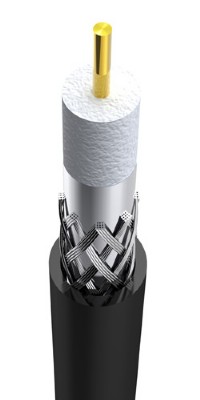

1) Construction
Center Conductor:1.25+0.01mm Solid Copper
Dielectric:5.30+0.05mmFoam PE
Shield:Copper /Polyester Tape
Braid Coverage:80%X16X6X0.12TC+0.005mm
Pet-Yes
Jacket:7.30+0.05mm PVC
Generic Standard:EN50117-1
Sectional Standard:EN50117-2
2) Characteristics
Impedance:75+3 Ohm
Capacitance:50+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (30-862MHz)
18dB min (862-2200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
10 |
2.0 |
|
50 |
3.7 |
|
200 |
7.3 |
|
470 |
11.5 |
|
800 |
14.9 |
|
1000 |
17.2 |
|
1750 |
23.3 |
|
2150 |
26.5 |
|
2400 |
27.9 |
|
3000 |
32.0 |
