KX8 90% BRAID COVERAGE

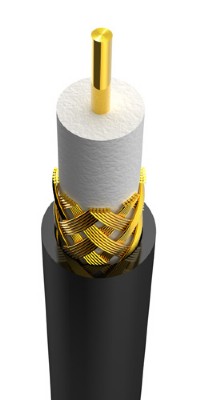

1) Description
7X0.40mm strand bare copper center conductor; solid
polyethylene dielectric; shield of bare copper braid wire; jacket of PVC
Nominal O.D. 10.30mm.
2) Physical Dimensions
Center Conductor:7X0.40+0.01mm Strand Bare Copper
Dielectric:7.25+0.05mm Foam PE
Braid Coverage:16X9X0.12+0.005mm Bare Copper Wire
Jacket:10.30+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:-30℃ To +75℃
Max. Recommended Pulling Tension: 180lbs
Min. Bend Radius (Install):5 in.
4) Electrical Characteristics
Sparker Test:2500 VAC
Impedance:75+3 Ohm
Capacitance:67+3pF/m
Velocity of Propagation:66%
SRL:25dB (5-470MHz)
20dB (470-1000MHz)
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 m) |
Frequency (MHz) |
Max. (dB/100 m) |
|
100 |
5.0 |
500 |
18.0 |
|
200 |
10.5 |
800 |
22.5 |
|
400 |
16.0 |
1000 |
26.0 |
