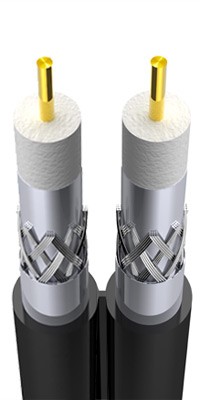

RG6 TRI-SHIELD SIAMESE
1) Description
18 gauge (1.02mm) copper covered steel or solid bare copper center conductor;
gas expanded polyethylene dielectric; first shield aluminum foil overlap bonded
to dielectric; second shield of bare aluminum braid wire; third shield aluminum
foil; jacket of polyvinylchoride or polyethylene. Nominal O.D. 7.06mm.
2) Physical Dimensions
Center Conductor:1.02+0.01mm Copper Clad Steel/Solid Bare Copper
Dielectric:4.57+0.05mm Foam PE
Shield:Bonded AL Foil 100%
Braid Coverage:60%X16X4X0.16+0.005mm AL Wire
Shield:AL Foi 100%
Jacket:7.06+0.05mm PVC/PE
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +75℃
Max. Recommended Pulling Tension: 45 lbs
Min. Bend Radius (Install):3.5 in.
4) Electrical Characteristics
Sparker Test:4000VAC
Impedance:75+3Ω
Capacitance:54+3pF/m
Velocity of Propagation:85%
SRL:20dB (5-1000MHz) / 15dB (1001-3000MHz)
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
1 |
0.38 |
900 |
6.96 |
|
5 |
0.58 |
1000 |
7.45 |
|
10 |
0.70 |
1200 |
8.25 |
|
50 |
1.48 |
1450 |
9.34 |
|
100 |
2.01 |
1800 |
10.69 |
|
200 |
2.86 |
2200 |
11.54 |
|
400 |
4.23 |
2500 |
11.70 |
|
700 |
5.96 |
3000 |
13.07 |
