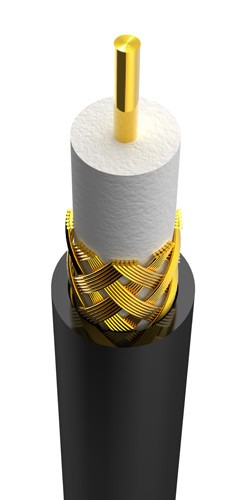

RG59 95% BRAID COVERAGE
1) Description
22 gauge (0.635mm) solid bare copper center conductor; gas expanded
polyethylene dielectric; shield of bare copper braid wire; jacket of polyvinylchoride
Nominal O.D. 6.10mm.
2) Physical Dimensions
Center Conductor: 0.635+0.005mm Solid Bare Copper
Dielectric: 3.708+0.05mm Foam PE
Braid Coverage: 95%X16X6X0.16+0.005mm Bare Copper Wire
Jacket: 6.147+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range: -40℃ To +75℃
Max. Recommended Pulling Tension: 391.442 N
Min. Bend Radius (Install 63.5mm.
4) Electrical Characteristics
Sparker Test: 2500 VAC
Impedance: 75+3 Ohm
Capacitance: 53.4803pF/m
Velocity of Propagation: 78%
SRL: 20dB (10-300MHz) 100% Sweep Tested
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 M) |
|
1 |
1.44364 |
|
10 |
2.9529 |
|
50 |
6.562 |
|
100 |
9.5149 |
|
200 |
13.4521 |
|
400 |
19.3579 |
|
700 |
25.5918 |
|
900 |
28.8728 |
|
1000 |
32.4819 |
