RG59U 95% BRAID COVERAGE

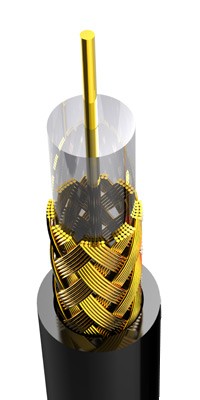

1) Description
23 gauge (0.584mm) solid bare copper center conductor;
Solid polyethylene dielectric; shield of bare copper braid wire; jacket of polyvinylchoride
Nominal O.D. 6.10mm.
2) Physical Dimensions
Center Conductor: 0.584+0.005mm Solid Bare Copper
Dielectric: 3.71+0.05mm Solid PE
Braid Coverage: 95%X16X6X0.16+0.005mm Bare Copper Wire
Jacket: 6.10+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range: -40℃ To +75℃
Max. Recommended Pulling Tension: 62 lbs
Min. Bend Radius (Install): 2.5 in.
4) Electrical Characteristics
Sparker Test: 2500 VAC
Impedance: 75+3 Ohm
Capacitance: 67.2 pF/m
Velocity of Propagation: 66%
SRL: 20dB (10-300MHz) 100% Sweep Tested
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 M) |
|
1 |
1.9686 |
|
10 |
3.6091 |
|
50 |
7.8744 |
|
100 |
11.1554 |
|
200 |
16.0769 |
|
400 |
22.967 |
|
700 |
31.8257 |
|
900 |
36.4191 |
|
1000 |
39.372 |
