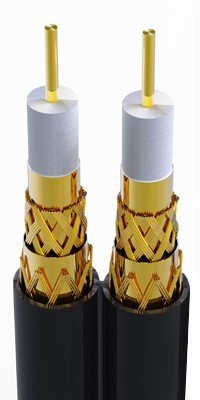

RG6 QUAD-SHIELD SIAMESE
1) Description
18 gauge (1.02mm) copper covered steel or solid bare copper center conductor;
gas expanded polyethylene dielectric; first shield aluminum foil overlap bonded
to dielectric; second shield of bare aluminum braid wire; third shield
aluminum foil; fourth shield of bare aluminum braid wire; jacket of
polyvinylchoride or polyethylene. Nominal O.D. 7.54mm.
2) Physical Dimensions
Center Conductor:1.02+0.01mm Copper Clad Steel/Solid Bare Copper
Dielectric:4.57+0.05mm Foam PE
Shield:Bonded AL Foil 100%
Braid Coverage:60%X16X4X0.16+0.005mm AL Wire
Shield:AL Foi 100%
Braid Coverage:40%X16X3X0.16+0.005mm AL Wire
Jacket:7.54+0.05mm PVC/PE
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +75℃
Max. Recommended Pulling Tension: 76 lbs
Min. Bend Radius (Install):2.5 in.
4) Electrical Characteristics
Sparker Test:4000VAC
Impedance:75+3Ω
Capacitance:54+3pF/m
Velocity of Propagation:85%
SRL:20dB (5-1000MHz) / 15dB (1001-3000MHz)
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
1 |
0.37 |
900 |
5.79 |
|
5 |
0.55 |
1000 |
6.11 |
|
10 |
0.66 |
1200 |
6.73 |
|
50 |
1.41 |
1450 |
7.49 |
|
100 |
1.92 |
1800 |
8.43 |
|
200 |
2.64 |
2200 |
9.35 |
|
400 |
3.73 |
2500 |
9.97 |
|
700 |
5.05 |
3000 |
10.92 |
