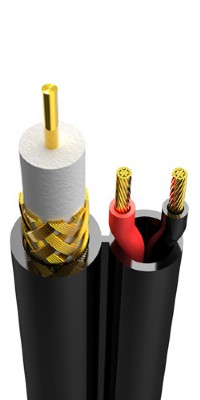

RG6 95% BRAID WITH 18AWG/2C
1) Description
18 gauge (1.02mm) solid bare copper center conductor;
gas expanded polyethylene dielectric; shield of bare aluminum braid wire; with
18AWG/2C; jacket of polyvinylchoride. Nominal O.D. 6.91mm.
2) Physical Dimensions
Center Conductor:1.02+0.01mm Solid Bare Copper
Dielectric:4.32+0.05mm Foam PE
Braid Coverage:95%X16X7X0.16+0.005mm AL Wire
Jacket:6.10+0.05mm PVC
Jacket Thickness:0.45+0.05mm PVC
18AWG/2C:7X0.386+0.01mm Stranded Bare Copper
Insulation:1.80+0.05mm Solid PE
Jacket (2C):3.80+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +75℃
Max. Recommended Pulling Tension: 45 lbs
Min. Bend Radius (Install):3 in.
4) Electrical Characteristics
Sparker Test:2500 VAC
Impedance:75+3Ω
Capacitance:52+3pF/m
Velocity of Propagation:84%
SRL:20dB (10-300MHz) 100% Sweep Tested
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
1 |
0.21 |
400 |
4.46 |
|
5 |
0.60 |
700 |
5.89 |
|
10 |
0.65 |
900 |
7.47 |
|
100 |
2.04 |
1000 |
8.02 |
