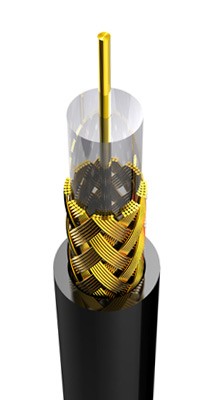

BT2001, BT2002, BT2003, BT3002, BT RA7000, BT RA8000, BT TZC75024

1) Physical Dimensions

Component	Material	BT2001	BT2002	BT2003	BT3002	BTRA7000	BTRA8000	BT TZC75024
Center Conductor	BC	7X0.203 mm	7X0.203 mm	0.574 mm	0.32 mm	0.6 mm	0.31 mm	0.32mm
Dielectric	PE	Foam PE	Foam PE	Solid PE	Solid PE	Foam PE	Cellular PE	Solid PE
First Shield		※	※	※	※	Al-PE Tape	Al-PE Tape	16X6X0.16mm XTCX91%
Second Shield						TC Braid 95%	TC Braid 95%	16X6X0.16mm XTCX90%
Jacket	PVC	4.4 mm	5.1 mm	6.7 mm	3.55 mm	4.5 mm	2.75 mm	3.55mm

2) Attenuation

Component	BT2001	BT2002	BT2003	BT3002	BTRA7000	BTRA8000	BT TZC75024
1 M Hz/100m	1.87 dB	1.87 dB	1.16dB	2.13dB	1.21dB	1.89dB	2.13dB
4 M Hz/100m	3.61 dB	3.61 dB	2.33dB	4.29dB	2.50dB	3.85dB	4.29dB
17 M Hz/100m	6.88 dB	6.88 dB	4.79dB	8.93dB	4.95dB	8.02dB	8.93dB
69 M Hz/100m	11.66 dB	11.66 dB	9.65dB	18.32dB	9.15dB	14.32dB	18.32dB
78 M Hz/100m	12.10 dB	12.10 dB	10.26dB	19.53dB	9.65dB	16.53dB	19.53dB

3) Electrical Characteristics:

Impedance: 75+3Ω

Capacitance: 53 pf/M

Velocity: 78%

Remark:

CCS=Copper Clad Steel

BC=Bare Copper

AL=Aluminium

☆ =No Option

※=As Per Your Option
