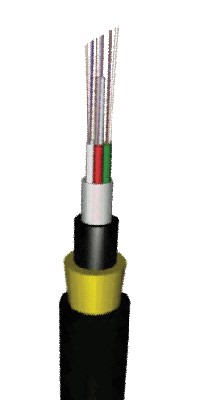

Description
The fibers, 250um, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic(FRP)locates in the center of core sa a non-metallic strength member. The tubes(and fillers)are stranded around the strength member into a compact and circular core.
After the cable core is filled with the filling compound,it is covered with thin PE(polyethlyene)inner sheath. Then a layer of aramid yarn is applied as additional strength member
and the cable is completed with a polyethylene(PE)outer sheath.
Characteristics
Good mechanical and temperature performance
Aramid yarn strength member ensures good performance of tensile strength
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
Standards
GYHTY cable complies with Standard YD/T901-2001 as well as IEC 60794-1.
Technical Parameters
Cable Type
(Increased by 2 fibers)
Fiber
Count
Tubes
Fillers
Cable Diameter
mm
Cable
Weight
kg/km
Tensile Strength
Long/Short Term
N
Crush Resistance
Long/Short Term
N/ 100mm
Bending Radius
Static/Dynamic
mm
GYHTY-2~6Xn
2~6
1
5
11.0
100
600/1500
300/1000
10D/20D
GYHTY8~12 Xn
8~12
2
4
11.0
100
600/1500
300/1000
10D/20D
GYHTY-14~18 Xn
14~18
3
3
11.0
100
600/1500
300/1000
10D/20D
GYHTY20~24 Xn
20~24
4
2
11.0
100
600/1500
300/1000
10D/20D
GYHTY-26~30 Xn
26~30
5
1
11.0
100
600/1500
300/1000
10D/20D
GYHTY-32~36 Xn
32~36
6
0
11.0
100
600/1500
300/1000
10D/20D
Storage/Operating Temperature:-40℃ to +70℃
Note:
a. Suffix Xn denotes fiber type and see details in optical fiber instruction.
b. The colour arrangements of fiber and tube are specified in the colour identification table.
c. The nominal value of the PE sheath thickness is 1.0mm while the nominal value
of the PE inner sheath thickness is 1.0mm.
