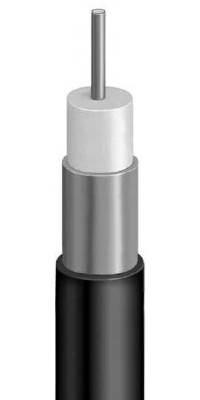

A solid aluminum tube is precision, micro-cellular foam dieletric core, the core containers

A fully bonded copper clad center conductor, PE jacket.

Suitable Applications: multiple dwelling units (MDU) and feeder applications,



Center Conductor: 1.8+0.01mm Copper Clad Aluminum

Dielectric: 7.47+0.05mm Foam PE

Diameter of Shield: 8.13+0.01mm AL Tube

Jacket: 10.03+0.1mm PE



Operating Temperature Range: -20℃ To +60℃

Max. Pulling Tension:  54.5kgf

Min. Bend Radius : 5.8 cm



Impedance: 75+2 Ohm

Capacitance 50+3pF/m

Velocity of Propagation: 87%

Inner Conductor: 10.76Ω/km

Outer Conductor: 3.25Ω/km

Loop: 14.10Ω/km
