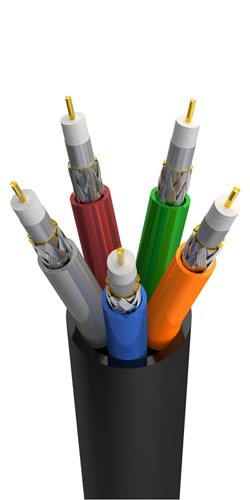

5 BUNDED RG59 HDTV CABLES
1) Description
20 gauge (0.81mm) solid bare copper center conductor; gas expanded
polyethylene dielectric; inner shield aluminum foil overlap bonded
to dielectric; shield of tinned copper braid wire; jacket of polyvinylchoride
Nominal individual O.D. 6.10mm; Over Jacket O.D. 19.30mm.
2) Physical Dimensions
Center Conductor: 0.81+0.01mm Solid Bare Copper
Dielectric: 3.66+0.05mm Foam PE
Shield: Bonded AL Foil 100%
Braid Coverage: 90%X16X7X0.16+0.005mm Tinned Copper
Individual Jacket: 6.10+0.05mm PVC
Over Jacket: 19.30+0.05mm PVC
Jacket Thickness: 1.27+0.05mm
Jkt Min. Spot Thickness: 1.02mm
3) Mechanical Characteristics
Operating Temperature Range: -20℃ To +75℃
Max. Recommended Pulling Tension: 216 lbs
Min. Bend Radius (Install): 7.0 in.
4) Electrical Characteristics
Sparker Test: 4000 VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 82%
SRL: 26 dB (1-450 MHz) 100% Swept Tested
23 dB (451-850 MHz) 100% Swept Tested
15 dB (851-3000 MHz) 100% Swept Tested
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
1 |
0.30 |
3.6 |
0.56 |
|
10 |
0.90 |
71.5 |
2.13 |
|
135 |
2.70 |
270 |
3.88 |
|
360 |
4.56 |
540 |
5.50 |
|
720 |
6.40 |
750 |
6.50 |
|
100 |
7.75 |
1500 |
9.40 |
|
2500 |
12.40 |
3000 |
13.80 |
