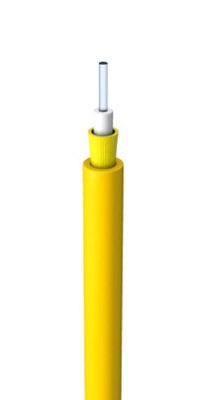

Indoor Fiber optic Cable for Terminal Assembly GJAFJV(H)
Indoor Fiber optic Cable for Terminal Assembly GJAFJV(H)
Nonmetallic strength member
Tight tube PVC or LSZH sheath
Characteristics
Low transmission loss and dispersion
Small outer diameter and light, applicable to limited room, such as indoor equipment and inside building
Good flexibility and bend
Flame retardant PVC sheath
Application
Terminal assembly, including patch cord, cable for devices, etc
Applicable to indoor cabling:
Especially suitable for making double-core patch cord with connector:
Serve as pigtail, patch cord or flexible connection cable between equipments and meters in LAN or machine room inside buildings.
Technical Parameters
|
Fiber Count |
Cable Diameter
mm |
Cable
Weight
kg/km |
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/ 100mm |
Bending Radius
Static/Dynamic
mm |
|
1 |
1.6 |
3.5 |
40/80 |
100/500 |
10D/20D |
|
1 |
2.0 |
4.0 |
60/100 |
100/500 |
10D/20D |
Storage/Operating Temperature:-20℃ to +60℃
The cable’s size, strength and other specifications can be adjusted according to customers’ request.
Note
D represents the diameter of the cable, the bend radius could be half for G657 fiber
The fiber could be single mode G652, G657 and multi mode A1a and A1b
Sheath materials could be LSZH Polyolefin or PVC
Sheath color is according to YD/T 1258.2-2009, or specified by customer
The cable length could be 1km, 2km or specified by customer
Other requirements agreed by the customer and the supplier
