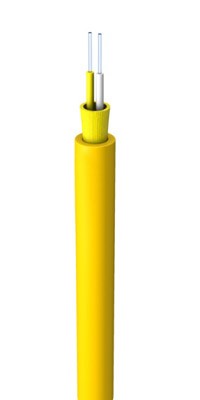

Indoor Fiber optic Cable 2 Cores GJFJ8V
Indoor Optical Fiber Cable
Tight Buffered Fiber
Nonmetallic strength member
PVC or LSZH Polyolefin sheath
Characteristics
·Low transmission loss and dispersion
·Small outer diameter and light, applicable to limited room, such as indoor equipment and inside building
·Good flexibility and bend
·Flame retardant PVC sheath
Application
Transmission equipment etc, integrated distribution network
Especially suitable for making double-core patch cord with connector:
Serve as pigtail, patch cord or flexible connection cable between equipments and meters in LAN or machine room inside buildings.
Technical Parameters
|
Fiber Count |
Cable Diameter
mm |
Cable
Weight
kg/km |
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/ 100mm |
Bending Radius
Static/Dynamic
mm |
|
2 |
2.9x5.9 |
8.0 |
100/200 |
100/500 |
10D/20D |
Storage/Operating Temperature:-20℃ to +60℃
The cable’s size, strength and other specifications can be adjusted according to customers’ request.
Note
D represents the diameter of the cable, the bend radius could be half for G657 fiber
The fiber could be single mode G652, G657 and multi mode A1a and A1b
Sheath materials could be LSZH Polyolefin or PVC
Sheath color is according to YD/T 1258.2-2009, or specified by customer
The cable length could be 1km, 2km or specified by customer
Other requirements agreed by the customer and the supplier
