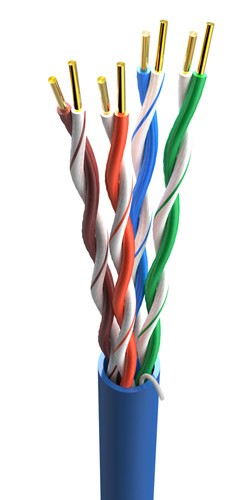

UTP CAT 3 4 PAIR
1) Description
24 AWG solid bare copper conductors, Polyolefin insulation, twisted pairs,
PVC jacket (red, orange, yellow, green, white, blue or gray)
2) Physical Dimensions
Center Conductor:0.51+0.01mm BC
Insulation:0.89+0.02mm PE
Pair:4
Jacket:5.00+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +75℃
Installation Temperature Range:0℃ To +60℃
Max. Recommended Pulling Tension: 35 lbs
Min. Bend Radius (Install):0.5 in.
4) Pair Identification:
|
Pair 1 |
Blue/White w/Co-Extruded Blue Stripe on White Single |
|
Pair 2 |
Orange/White w/Co-Extruded Orange Stripe on White Single |
|
Pair 3 |
Green/White w/Co-Extruded Green Stripe on White Single |
|
Pair 4 |
Brown/White w/Co-Extruded Brown Stripe on White Single |
5) Electrical Characteristics
Capacitance:15 pF/ft
Max. Capacitance Unbalance:330 pF/100m
Velocity of Propagation.:PE =70%
Max. Delay:(ns/100m) 538@100MHz ns/100m
Max. Delay Skew(ns/100m):45 ns/100m
Conductor DCR:9.38Ω/100m
Max. DCR unbalance:5%
Max. Operating Voltage-UL:300 V RMS
6) Electrical Performance [@68℉. (20℃)]:
|
Frequency
MHz |
Max. Attenuation dB/100m |
Min. NEXT dB/100m |
Min SRL dB |
Fitted Impedance
Ohms |
|
1 |
2.56 |
41.0 |
12.0 |
100+/-15% |
|
4 |
5.58 |
32.0 |
12.0 |
100+/15% |
|
10 |
9.71 |
26.0 |
12.0 |
100+/15% |
|
16 |
13.1 |
23.0 |
9.96 |
100+/15% |
