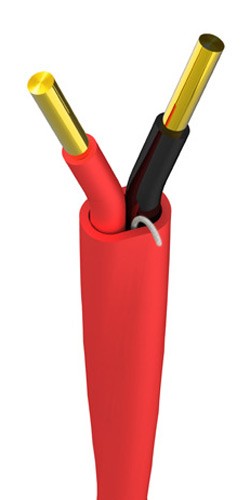

SECURITY CABLE 14AWG/2C SOLID SHIELD
1) Description
14 gauge (1.63mm) 2 solid bare copper conductor; PVC insulation, ripcord,
shield, PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:1.63+0.01mm Solid Bare Copper
Insulation:2.30+0.02mm PVC
Insulation Thickness:0.33mm
Ripcord:YES
Shield:AL Mylar Tape
Drain Wire:7X0.22mm TC
Jacket:5.60+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:44.00 Lbs/Mft
Min. Bend Radius:2.2 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:2.52Ω/Mft
Capacitance:78 pF/ft
