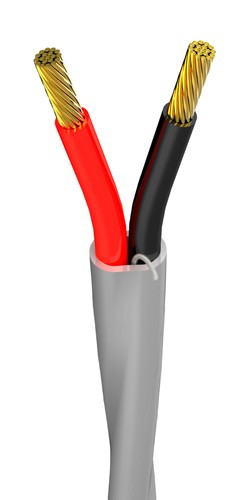

SECURITY CABLE 14AWG/2C STRAND
1) Description
14 gauge (7X0.53mm) 2 strand bare copper conductor; PVC insulation, ripcord
PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:7X0.53+0.01mm Solid Bare Copper
Insulation:2.52+0.02mm PVC
Insulation Thickness:0.33mm
Ripcord:YES
Jacket:5.85+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:37.50 Lbs/Mft
Min. Bend Radius:2.2 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:2.62Ω/Mft
Capacitance:32 pF/ft
