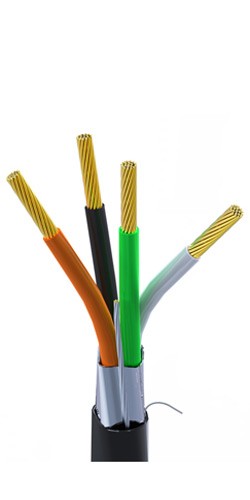

SECURITY CABLE 16AWG/4C SOLID
1) Description
16 gauge (1.29mm) 4 solid bare copper conductor; PVC insulation, ripcord
PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:1.29+0.01mm Solid Bare Copper
Insulation:1.80+0.02mm PVC
Insulation Thickness:0.23mm
Ripcord:YES
Jacket:4.98+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:42.00 Lbs/Mft
Min. Bend Radius:2.0 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:4.16Ω/Mft
Capacitance:30 pF/ft
