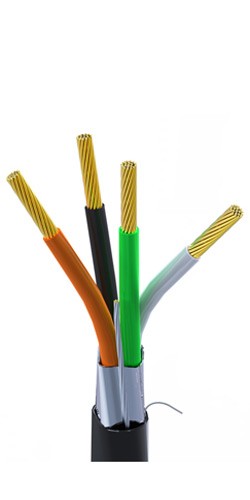

SECURITY CABLE 18AWG/4C SOLID
1) Description
18 gauge (1.02mm) 4 solid bare copper conductor; PVC insulation, ripcord
PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:1.02+0.01mm Solid Bare Copper
Insulation:1.55+0.02mm PVC
Insulation Thickness:0.254mm
Ripcord:YES
Jacket:4.55+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:28.00 Lbs/Mft
Min. Bend Radius:1.8 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:6.5Ω/Mft
Capacitance:29 pF/ft
