RG58A/U

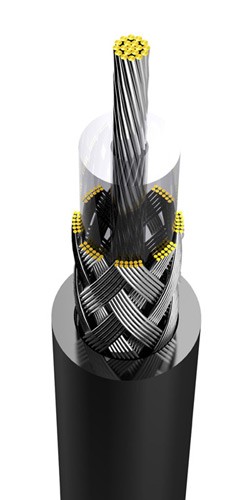

1) Description
20 gauge (19X0.202mm ) tinned copper center conductor;
foam polyethylene dielectric; shield of tinned copper braid wire; jacket
of polyvinylchoride. Nominal O.D. 5.00mm.
2) Physical Dimensions
Center Conductor: 19X0.202+0.01mm Tinned Copper
Dielectric: 2.95+0.05mm Foam PE
Braid Coverage: 96%X16X6X0.16+0.005mm Tinned Copper
Jacket: 5.00+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range: -20℃ To +75℃
Max. Recommended Pulling Tension: 42 lbs
Min. Bend Radius (Install): 2 in.
4) Electrical Characteristics
Sparker Test: 2000 VAC
Impedance: 50+2Ω
Capacitance: 26.0 pF/ft
Velocity of Propagation: 78%
5) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Nom. (dB/100 ft.) |
|
1 |
0.40 |
|
10 |
1.42 |
|
50 |
3.20 |
|
100 |
4.50 |
|
200 |
6.40 |
|
400 |
9.0 |
|
700 |
12.0 |
|
900 |
13.8 |
|
1000 |
14.5 |
