RG213/U

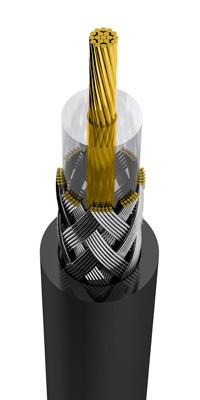

1) Description
7X0.723mm strand bare copper center conductor;
solid polyethylene dielectric; shield of tinned copper braid wire; jacket
of polyvinylchoride. Nominal O.D. 10.30mm.
2) Physical Dimensions
Center Conductor: 7X0.723+0.01mm bare Copper
Dielectric: 7.24+0.05mm Solid PE
Braid Coverage: 96%X24X7X0.16+0.005mm Bare Copper
Jacket: 10.30+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range: -20℃ To +75℃
Max. Recommended Pulling Tension: 180 lbs
Min. Bend Radius (Install): 5 in.
4) Electrical Characteristics
Sparker Test: 4000 VAC
Impedance:50+2Ω
Capacitance: 30.8 pF/ft
Velocity of Propagation:66%
5) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Nom. (dB/100 ft.) |
|
1 |
0.17 |
|
10 |
0.55 |
|
50 |
1.3 |
|
100 |
1.9 |
|
200 |
2.7 |
|
400 |
4.1 |
|
700 |
6.5 |
|
900 |
7.6 |
|
1000 |
8.0 |
|
4000 |
21.5 |
