14VAtC/PH

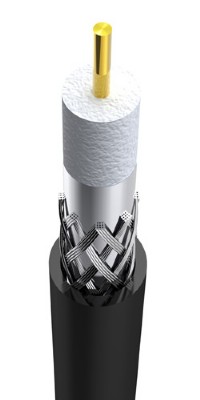

1) Construction
Center Conductor:1.70+0.01mm Solid Copper
Dielectric:7.30+0.05mmFoam PE
Shield:Alu/Polyester Tape
Braid Coverage:56%X16X6X0.12TC+0.005mm
PetYes
Jacket:10.20+0.05mm PVC
Generic Standard:EN50117-1
Sectional Standard:EN50117-2
2) Characteristics
Impedance:75+3 Ohm
Capacitance:50+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (30-862MHz)
18dB min (862-2200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
5 |
1.3 |
|
55 |
3.3 |
|
250 |
7 |
|
350 |
8.2 |
|
550 |
10.2 |
|
750 |
12.3 |
|
865 |
13.3 |
|
1000 |
14.7 |
