Stranded Loose Tube Non-metallic Strength Member Non-armored Cable (GYFTY)

1) Description

Stranded loose tube cable with non-metallic center strength member.
The fibers, either single or multi-mode type, are placed in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. A steel wire sometimes shielded with Polyethylene (PE) for cable with big fiber quantity, locates in the center of the cable as a metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. The cable is completed with a PE sheath.

2) Application

Long-distance communication, local trunk line, CATV & computer networks system.

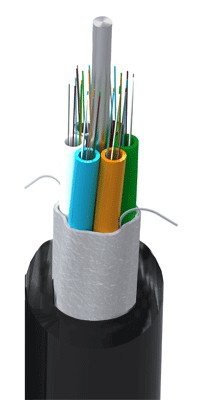

3) Structure:

4) Technical characteristics

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
With good anti-electromagnetism ability
With small cable diameter, light cable weight, easily to lay

5)Technical Indicates

Fiber count	Cable dia.（mm）	Cable net weight(Kg/km)	Min. bending radius（mm）		Min. tensile strength（N）		Min. crush pressure（N/100mm）
Fiber count	Cable dia.（mm）	Cable net weight(Kg/km)	Static state	Dynamic state	Short term	Long term	Short term	Long term
42 and below	11.5	106	120	240	1500	600	1000	300
44～48	11.9	115	120	240	1500	600	1000	300
50～56	11.9	112	120	240	1500	600	1000	300
58～84	12.9	134	130	260	1500	600	1000	300
86～96	13.7	155	140	280	1500	600	1000	300
98～108	14.5	179	150	300	1500	600	1000	300
110～120	15.3	204	160	320	1600	600	1000	300
122～132	16.1	232	170	340	1800	600	1000	300
134～144	16.9	262	170	340	1900	600	1000	300
42 and below	11.5	106	120	240	1500	600	1000	300
Operating Temperature			-40～+60℃

* the cable structure also can be design according to customers' requirement.
