Figure 8 Cable (GYTC8A)
Description

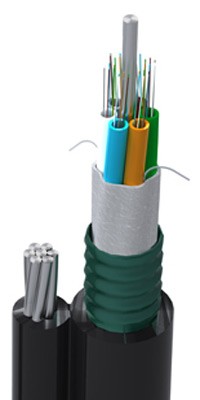

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates wife locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core .After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Figure 8 cable GYTC8Y, GYTC8S are also available on request. This type of cable is specifically applied for self-supporting aerial installation.
Characteristics
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight;
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Standards
GYTC8A cable complies with Standard YD/T1155-2001 as well IEC 60794-1.
Technical Parameters
|
Cable Type
(Increased by 2 fibers) |
Fiber
Count |
Tubes |
Fillers |
Cable Diameter
mm |
Cable
Weight
kg/km |
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/ 100mm |
Bending Radius
Static/Dynamic
mm |
|
GYTC8A-2~6 |
2~6 |
1 |
4 |
9.5×18.3 |
218 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8A-8~12 |
8~12 |
2 |
3 |
9.5×18.3 |
218 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8A-14~18 |
14~18 |
3 |
2 |
9.5×18.3 |
218 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8A-20~24 |
20~24 |
4 |
1 |
9.5×18.3 |
218 |
600/1500 |
300/1000 |
10D/20D |
|
GYTC8A-26~30 |
26~30 |
5 |
0 |
9.5×18.3 |
218 |
600/1500 |
300/1000 |
10D/20D |
Storage/Operating Temperature:-40℃ to +70℃
Note:
a. Suffix Xn denotes fiber type and see details in optical fiber instruction.
b. The colour arrangements of fiber and tube are specified in the colour identification table.
c. The nominal value of PE sheath thickness: the cable core- 1.5mm, the suspension-1.0mm.
d. The suspension steel wires have two different dimensions with Diameters of 1.2mm and 1.6mm.
