24VAtC/PH

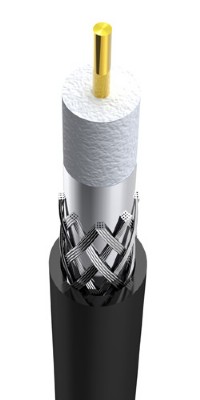

1) Construction
Center Conductor:0.75+0.01mm Solid Copper
Dielectric:3.20+0.05mmFoam PE
Shield:Alu/Polyester Tape
Braid Coverage:43%X16X6X0.12TC+0.005mm
Pet-Yes
Jacket:5.90+0.05mm PVC
Generic Standard:EN50117-1
Sectional Standard:EN50117-2
2) Characteristics
Impedance:75+3 Ohm
Capacitance:50+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (30-862MHz)
18dB min (862-2200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
|
5 |
0.58 |
1.90 |
|
50 |
1.80 |
6.00 |
|
100 |
2.56 |
8.40 |
|
200 |
3.63 |
11.90 |
|
400 |
5.15 |
16.90 |
|
800 |
7.32 |
24.00 |
|
950 |
8.02 |
26.30 |
|
1000 |
8.24 |
27.00 |
