KX6 92% BRAID COVERAGE

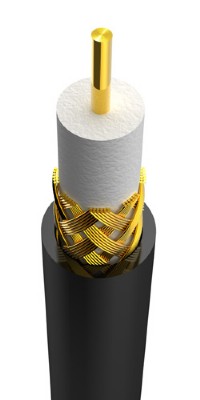

1) Description
7X0.20mm strand bare copper center conductor; solid polyethylene dielectric;
shield of bare copper braid wire; jacket of PVC
Nominal O.D. 6.15mm.
2) Physical Dimensions
Center Conductor:7X0.2+0.01mm Solid Bare Copper
Dielectric:3.70+0.05mm Solid PE
Braid Coverage:16X7X0.12+0.005mm Bare Copper Wire
Jacket:6.15+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +75℃
Max. Recommended Pulling Tension: 68 lbs
Min. Bend Radius (Install):2.5 in.
4) Electrical Characteristics
Sparker Test:2500 VAC
Impedance:75+3 Ohm
Capacitance:67+3pF/m
Velocity of Propagation:66%
SRL:25dB (5-470MHz)
20dB (470-1000MHz)
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 m) |
Frequency (MHz) |
Max. (dB/100 m) |
|
5 |
2.59 |
150 |
14.53 |
|
50 |
8.13 |
200 |
16.92 |
|
100 |
11.73 |
1000 |
40.02 |
