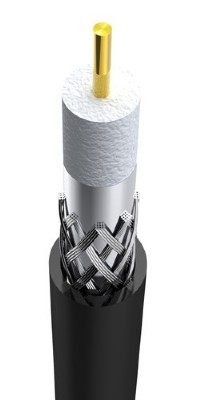

10C-2V
1) Construction
Center Conductor:7X0.50mm Solid Copper
Dielectric:9.3mm PE
Shield:Bonded Al Foil
Braid Coverage:16X6X0.12mm Copper Wire
Jacket:13.00mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:67+3pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
0.44 |
|
10 |
1.6 |
|
30 |
2.7 |
|
200 |
7.6 |
