1.5C-2V

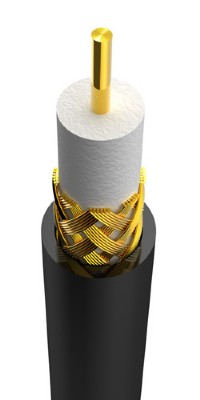

1) Construction
Center Conductor:0.26mm Solid Copper
Dielectric:1.6mm PE
Braid Coverage:16X5X0.1mm Copper Wire
Jacket:2.9mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:69+4pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
2.7 |
|
10 |
9.6 |
|
30 |
14.3 |
|
200 |
39 |
