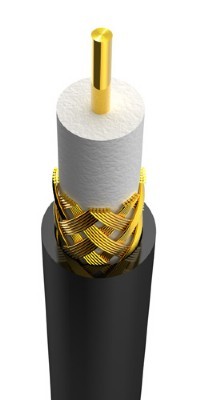

2.5C-2V
1) Construction
Center Conductor:0.4mm Solid Copper
Dielectric:2.4mm PE
Braid Coverage:16X6X0.12mm Copper Wire
Jacket:4.0mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:69+4pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
1.6 |
|
10 |
5.2 |
|
30 |
9.0 |
|
200 |
25 |
