RG6 90% BRAID COVERAGE

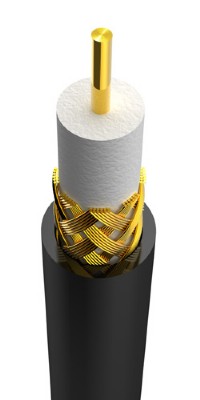

1) Description
18 gauge (1.02mm) copper covered steel or solid bare copper center conductor;
gas expanded polyethylene dielectric; shield of bare aluminum braid wire; jacket
of polyvinylchoride. Nominal O.D. 6.91mm.
2) Physical Dimensions
Center Conductor:1.02+0.01mm Copper Clad Steel/Solid Bare Copper
Dielectric:4.57+0.05mm Foam PE
Braid Coverage:90%X16X6X0.16+0.005mm AL Wire
Jacket:6.91+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:-20℃ To +75℃
Max. Recommended Pulling Tension: 45 lbs
Min. Bend Radius (Install):3 in.
4) Electrical Characteristics
Sparker Test:4000VAC
Impedance:75+3Ω
Capacitance:54+3pF/m
Velocity of Propagation:85%
SRL:20dB (10-300MHz) 100% Sweep Tested
5) Attenuation
|
Attenuation |
[@68℉. (20℃)] |
|
Frequency (MHz) |
Max. (dB/100 ft) |
Frequency (MHz) |
Max. (dB/100 ft) |
|
1 |
0.19 |
200 |
3.13 |
|
5 |
0.52 |
400 |
4.55 |
|
10 |
0.65 |
700 |
6.23 |
|
50 |
1.50 |
900 |
7.23 |
|
100 |
2.16 |
1000 |
7.75 |
