Unitube Light-armored Cable (GYXS/GYXTW)

1) Description

Unitube, armored cable.
The fibers, either single or multi-mode type, are placed in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube, water blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a PE sheath.

2) Application

Long-distance communication, local trunk line, CATV & computer networks system.

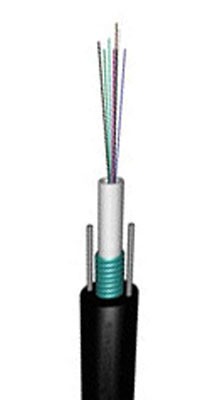

3) Structure:

4) Technical characteristics

Low dispersion and attenuation
Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay

5)Technical Indicates

Fiber count	Cable dia.（mm）	Cable net weight(Kg/km)	Min. bending radius（mm）		Min. tensile strength（N）		Min. crush pressure（N/100mm）
Fiber count	Cable dia.（mm）	Cable net weight(Kg/km)	Static state	Dynamic state	Short term	Long term	Short term	Long term
6 and below	10.1	104	110	220	1500	600	1000	300
8～12	10.6	114	110	220	1500	600	1000	300
Operating Temperature			-40～+60℃

* the cable structure also can be design according to customers' requirement.
