GYXTA

1) Description

Unitube, armored cable.
The fibers, either single or multi-mode type, are placed in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. The tube is covered with steel wires around. A layer of Copolymer Coated Aluminum tape is wrapped longitudinally. Between the Copolymer Coated Aluminum tape and the steel wires, water blocking material is applied to keep the cable compact and watertight. The cable is completed with a PE sheath.

2) Application

Rural communication, local trunk line, CATV & computer networks system.

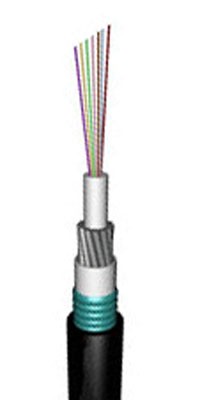

3) Structure:

4) Technical characteristics

Low dispersion and attenuation
Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties
The armoring of steel wires and aluminum-PE jacket make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay

5)Technical Indicates

Fiber count	Cable dia.（mm）	Cable net weight(Kg/km)	Min. bending radius（mm）		Min. tensile strength（N）		Min. crush pressure（N/100mm）
Fiber count	Cable dia.（mm）	Cable net weight(Kg/km)	Static state	Dynamic state	Short term	Long term	Short term	Long term
6 and below	10.4	141	110	220	1500	600	1000	300
8～12	10.9	155	110	220	1500	600	1000	300
14～24	11.5	177	120	240	1500	600	1000	300
Operating Temperature			-40～+60℃

* the cable structure also can be design according to customers' requirement.
