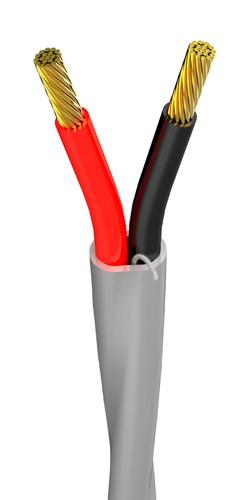

SECURITY CABLE 18AWG/2C STRAND SHIELD
1) Description
18 gauge (19X0.25mm) 2 strand bare copper conductor;
solid PVC insulation, shield, drain wire, ripcord, PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call
2) Physical Dimensions
Center Conductor:19X0.25+0.005mm Solid Bare Copper
Insulation:1.65+0.02mm PVC
Insulation Thickness:0.23mm
Shield:AL Mylar Tape
Drain Wire:7X0.22mm TC
Ripcord:YES
Jacket:4.20+0.03mm PVC
Jacket Thickness:0.38mm
3) Mechanical Specification
Operating Temperature Range:-20℃ To +75℃
Cable Weight:21.80 Lbs/Mft
Min. Bend Radius:1.7 in.
4) Electrical Characteristics
Operating Voltage:300 VRMS
Max. Conductor DCR:6.5Ω/Mft
Capacitance:35 pF/ft
