2.5C-2VS

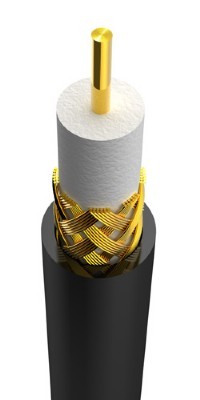

1) Construction
Center Conductor:7x0.14mm Stranded Copper
Dielectric:2.4mm PE
Braid Coverage:16X6X0.12mm Copper Wire
Jacket:4.0mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:69+4pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
1.8 |
|
10 |
6.0 |
|
30 |
11 |
|
200 |
28 |
