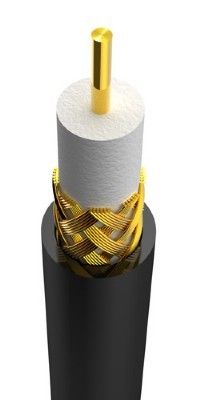

3C-2V
1) Construction
Center Conductor:0.50mm Solid Copper
Dielectric:3.00mm PE
Braid Coverage: 16X5X0.12mmCopper Wire
Jacket:5.4mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:67+3pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
1.4 |
|
10 |
4.2 |
|
30 |
7.3 |
|
200 |
19.4 |
