7C-2V

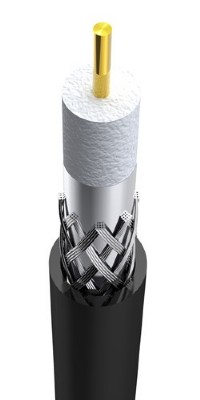

1) Construction
Center Conductor:7X0.40mm Solid Copper
Dielectric:7.2mm PE
Shield:Bonded Al Foil
Braid Coverage:16X5X0.12mm Copper Wire
Jacket:10.30mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:67+3pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
0.55 |
|
10 |
1.80 |
|
30 |
3.20 |
|
200 |
9.00 |
