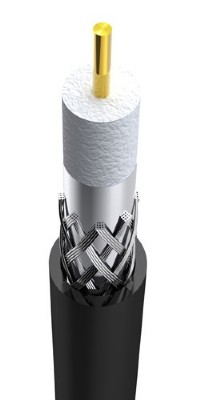

5C-2VS
1) Construction
Center Conductor:7x0.26mm Stranded Copper
Dielectric:4.70mm Foam PE
Shield:-Bonded Al Foil
Braid Coverage:16X4X0.12mm Copper Wire
Jacket:6.80mm PVC
2) Characteristics
Impedance:75+3 Ohm
Capacitance:67+3pF/m
Return Loss:20dB min (5-200MHz)
3) Attenuation
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 m) |
|
1 |
0.9 |
|
10 |
3.1 |
|
30 |
5.5 |
|
200 |
15 |
